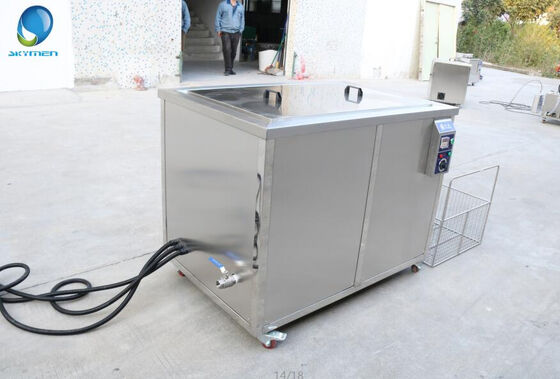

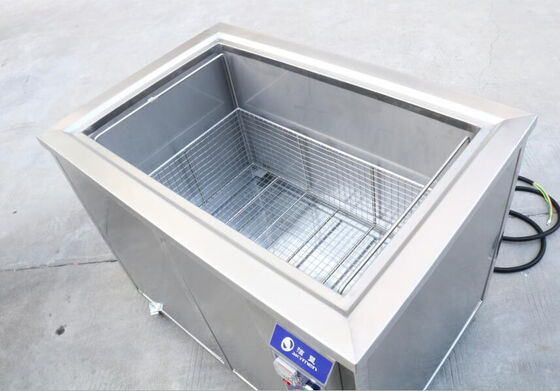

Large Tank Industrial Ultrasonic Cleaner for Engine Block Cleaning
Skymen 960L Capacity Single Tank Industrial Ultrasonic Cleaner JP-1144ST
Technical Specifications
| Ultrasonic Frequency |
28KHz/40KHz |
| Material |
Stainless Steel SUS304 |
| Tank Capacity |
960 Liter |
| Transducer |
144pcs |
| Timer |
1-99 Hours adjustable |
| Heater |
20°C to 95°C adjustable |
| Power Supply |
AC380V, 3 phase/60Hz
AC220V, 3 phase/60Hz |
| Heating Power |
27000W |
| Ultrasonic Power |
7200W |
| Generator |
4pcs |
| Tank Size (LxWxH) |
1200x1000x800mm |
| Unit Size |
1500x1300x1250mm |
| Packing Size |
1580x1380x1380mm Wooden case |
| Warranty |
1 year |
Model Comparison - Single Tank Power Heater Adjustable Series
Please choose the size that fits your needs, or contact us for professional suggestions:
| Model |
JP-360ST |
JP-480ST |
JP-600ST |
JP-720ST |
JP-1108ST |
JP-1144ST |
| Capacity (L) |
135 |
175 |
264 |
360 |
540 |
960 |
| Tank Size (MM) |
600*500*450 |
700*500*500 |
800*600*550 |
1000*600*600 |
1000*900*600 |
1200*1000*800 |
| Packing Size (MM) |
870*760*805 |
980*755*800 |
1080*860*935 |
1270*870*985 |
1300*1200*1050 |
1500*1300*1250 |
| Frequency (KHz) |
28/40 |
| Ultrasonic Power (W) |
0-1800 |
0-2400 |
0-3000 |
0-3600 |
0-5400 |
0-7200 |
| Heating Power (W) |
4500 |
6000 |
6000 |
9000 |
18000 |
27000 |
| Timer |
1-99 hour |
| Heater (°C) |
20-95 |
| Material |
SUS304 |
All models feature power adjustable digital control panel for easy operation, with castors and brake for easy mobility.
Key Features
- Stainless steel tank with excellent wear resistance and long working life
- Large 960-liter tank capacity for industrial applications
- Includes stainless steel basket for convenient part handling
- Compatible with tap water, industrial alcohol, and solvent cleaners for various cleaning requirements
- Industrial control chip microcontroller with flexible circuit boards for secure and stable operation
- Equipped with drainage system, basket, lid, and multi-directional castors
- High-quality Korean transducers
- Independent R&D PCB board design and production by Skymen
- Suitable for cleaning cast iron, steel, stainless steel, brass, bronze and other materials
Ultrasonic Cleaning Advantages
Superior Cleaning Performance
Compared to traditional cleaning methods, ultrasonic cleaners effectively remove dirt, oils, lubricants, carbon, and other types of grime that build up on objects. Grooves, internal passageways, hidden corners, seals, and other hard-to-reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts.
Cost and Labor Savings
Ultrasonic cleaning saves time and reduces labor costs while being completely safe for your objects.
How Ultrasonic Cleaning Works
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power. This cleaning action gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid. Because the liquid can penetrate into very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.
Industrial Applications
Electronic factories, utensil manufacturing, hardware, machinery, communication equipment, biological instruments, medical instruments, glasses, optical components, textile equipment, auto parts, ships, aviation, mining areas, commercial cleaning.
Kitchen industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
Warranty & Support
1 Year warranty for Skymen ultrasonic cleaner. If any technical problem occurs during warranty period, replacement parts will be sent free of charge. Technical support is also available after 1 year.
Packaging
Cleaning Results
Frequently Asked Questions
Q: What frequency is better for my parts?
A: Frequency selection is based on the type of pollutants on your objects. 28kHz frequency is stronger and better for car/motor/truck parts cleaning (removing oils, grease, pastes, etc.). 40kHz is better for PCB boards, electronic parts, and higher precision goods. Higher precision typically requires higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe and will not damage your objects.
Q: What cleaning solution should I use?
A: A large variety of different formulas are designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Q: Is rinsing required after cleaning cycles?
A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Parts can be rinsed right in your ultrasonic cleaner or in a clean water bath, or in a separate sink using tap, distilled, or deionized water.
About Skymen Cleaning Equipment
Skymen Cleaning Equipment Shenzhen Co., Ltd. has been engaged in the ultrasonic cleaner field for more than 10 years. Our main products are ultrasonic cleaners with different capacities. Our company is a famous ultrasonic manufacturer with comprehensive R&D, production, and sales capabilities. High quality products and after-sales services are available from us. Not only standard ultrasonic cleaners, but any non-standard requirements can be designed by our engineers.
