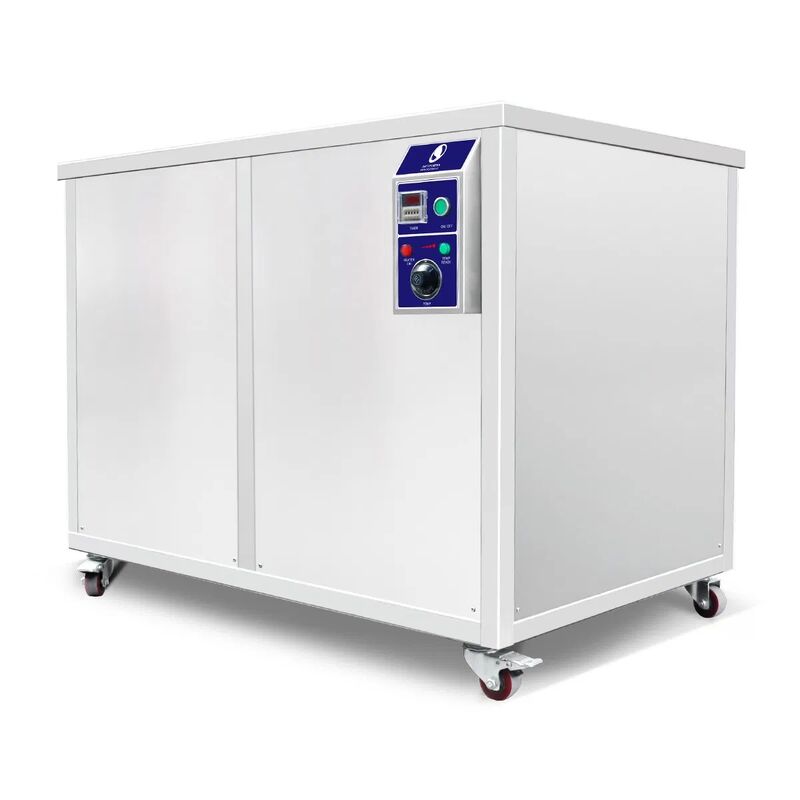

Skymen 540L Capacity Industrial Ultrasonic Cleaner JP-1108ST
Technical Specifications
| Specification | Details |
|---|
| Ultrasonic Frequency | 28KHz/40KHz |
| Material | Stainless Steel SUS304 |
| Tank Capacity | 540 Liter |
| Transducer | 108pcs |
| Timer | 1-99 Hours adjustable |
| Heater | 20°C to 95°C adjustable |
| Power Supply | AC380V, 3 phase/50Hz |
| Heating Power | 18000W |
| Ultrasonic Power | 5400W |
| Max Power | 23400W |
| Inlet Pipe | Diameter 1.2 inch |
| Drain Value | Diameter 1.2 inch |
| All Direction Wheel | Diameter 65mm |
| Current Lead | 3m |
| Generator | 2pcs |
| Tank Size (LxWxH) | 1000x900x600mm |
| Unit Size | 1300x1200x1100mm |
| Packing Size | 1370x1270x1225mm Wooden case |
| NW/GW | 210KG/217KG |
| Warranty | 1 year |
Available Models - Single Tank Power Heater Adjustable Series
Please choose the size that fits your requirements, or contact us for professional suggestions:
| Model |
JP-360ST |
JP-480ST |
JP-600ST |
JP-720ST |
JP-1108ST |
JP-1144ST |
| Capacity (L) |
135 |
175 |
264 |
360 |
540 |
960 |
| Tank Size (MM) |
600*500*450 |
700*500*500 |
800*600*550 |
1000*600*600 |
1000*900*600 |
1200*1000*800 |
| Packing Size (MM) |
870*760*805 |
980*755*800 |
1080*860*935 |
1270*870*985 |
1300*1200*1050 |
1500*1300*1250 |
| Frequency (KHz) |
28/40 |
| Ultrasonic Power (W) |
0-1800 |
0-2400 |
0-3000 |
0-3600 |
0-5400 |
0-7200 |
| Heating Power (W) |
4500 |
6000 |
6000 |
9000 |
18000 |
27000 |
| Timer |
1-99 hour |
| Heater (°C) |
20-95 |
| Material |
SUS304 |
All models feature power adjustable digital control panel, easy operation, with castor and brake for easy mobility.
Key Features
- Stainless steel tank with excellent wear resistance and long working life
- Large 540-liter tank capacity
- Includes stainless steel basket for organized cleaning
- Compatible with tap water, industrial alcohol, and solvent cleaners for various cleaning requirements
- Industrial control chip microcontroller with flexible circuit boards for secure and stable operation
- Complete package includes drainage system, basket, lid, and multi-direction castors
- High-quality Korean technique transducers
- Independent R&D and production of PCB boards by Skymen
- Suitable for cleaning cast iron, steel, stainless steel, brass, bronze, and various metals
Ultrasonic Cleaning Technology Benefits
Superior Cleaning Performance
Compared to traditional cleaning methods, ultrasonic cleaners effectively remove dirt, oils, lubricants, carbon, and other types of grime that build up on objects. Grooves, internal passageways, hidden corners, seals, and other hard-to-reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts.
Cavitation Technology
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power. This cleaning action gently and thoroughly removes contaminants from every surface in contact with the cleaning fluid. Because the liquid can penetrate into very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.
Operational Advantages
No damage to objects during cleaning process. Significant savings in cost and labor compared to manual cleaning methods.
Industrial Applications
Electronic factories, utensil manufacturing, hardware production, machinery maintenance, communication equipment, biological research, medical instruments, glasses and optical equipment, textile industry, auto parts, ships, aviation, mining areas, commercial cleaning services.
Specific industries: Kitchen equipment, medical industry, electronic manufacturing, molding factories, car workshops, diesel workshops, automotive industry, scientific laboratories, universities, dental clinics, eyeglass shops, hardware tools shops.
Warranty & Support
1 Year warranty for Skymen ultrasonic cleaner. If any technical problems occur during the warranty period, replacement parts will be sent free of charge. Technical support is also available after the 1-year warranty period.
Packaging
Cleaning Results
Frequently Asked Questions
What frequency is better for my parts?
Frequency selection is based on the type of pollutants on your objects. 28kHz frequency provides stronger cleaning action, making it better for car/motor/truck parts cleaning (removing oils, grease, pastes, etc.). 40kHz is better for PCB boards, electronic parts, and higher precision goods. Higher precision typically requires higher frequency.
Can ultrasonic cleaning damage parts?
Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe and will not damage your objects when used properly.
What cleaning solution should I use?
A large variety of different formulas are designed for specific applications. Proper selection is crucial for optimal cleaning performance and to prevent unwanted reactions with the workpiece.
Is rinsing required after cleaning cycles?
Rinsing is recommended to remove any chemical residue that could be harmful to the part. Parts can be rinsed directly in your ultrasonic cleaner, in a clean water bath, or in a separate sink using tap, distilled, or deionized water.
About Skymen Cleaning Equipment Shenzhen Co., Ltd.
With over 10 years of experience in the ultrasonic cleaner field, Skymen is a leading manufacturer specializing in ultrasonic cleaning equipment. Our comprehensive product range includes ultrasonic cleaners with various capacities to meet diverse industrial needs.
As a renowned ultrasonic manufacturer, we integrate research and development, production, and sales operations. We provide high-quality products and comprehensive after-sales services to ensure customer satisfaction.
In addition to our standard ultrasonic cleaner models, our engineering team can design and produce custom non-standard solutions to meet specific customer requirements.
