Large Industrial Ultrasonic Cleaning Machine 1500L for Parts
Large Industrial Ultrasonic Cleaning Machine for Mechanical Parts Metal Parts 1500L 2000L 4000L 5000L 6000L 8000L 10000L 15000L 20000L Air Cooler Washing Clean
Please choose the size that fits your needs, or contact us for professional suggestions:
Detailed Specifications
| Model |
JP-1288ST |
| Parameter |
Function: Ultrasonic cleaning |
| Ultrasonic Frequency: 28/40kHz (other frequency can be customized) |
| Tank Material: SUS 304 (SUS 316 can be customized) |
| Thickness of tank: 3mm |
| Inner tank dimension: 2000*1200*800mm |
| Tank Capacity: 1500L |
| Transducer: 216pcs |
| Ultrasonic Power: 10800W |
| Heating Power: 36000W |
| Time setting of Ultrasonic: 0~99 hours |
| Temperature setting: Room temperature ~ 95°C adjustable |
| Drain value: Available |
| Packing |
Overall size: 240*140*170cm
Packing size: 250*150*190cm
Packing detail: By wooden case (No logs, free of fumigation)
N.W/G.W: 500KG/600KG
|
| Power supply |
380V 3 phase; 220V 3 phase; 415V; 440V; 600V |
| Warranty |
1 year warranty for spare parts, lifetime technical support |
| Certificate |
CE, RoHS; FCC, REACH |
| Lead time |
20~30 working days after deposit |
Optional Functions
| Filtration cycle system |
Available; capture dirty water, recycle clean water |
| Lifting system for basket |
Available; take the basket up and down |
| Dunking system |
Available; Speed up cleaning |
| Bubbling |
Available; need to connect air compressor |
| Electrolysis |
Available; For cleaning more complex structure mold |
| Cooling system |
Available; To cool down inflammable and explosive |
| Constant temperature |
Available |
| Roller barrel |
Available; for clean coins and big quantity parts |
| Anti-explosion electric box |
Available |
| Deionized(DI) water |
Available |
| Double/Multi frequency |
Available; 28/40/20/68/80/132KHz |
| Other functions |
Negotiate via email |
More Size and Capacity Options
Key Features
- Stainless steel tank has resistance to wear and long work life
- Tank capacity: customizable to demand

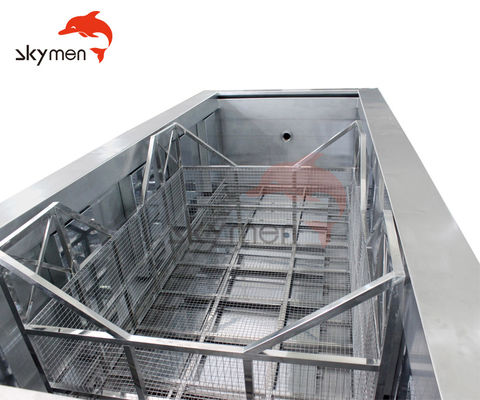

- Includes stainless steel basket
- Works with tap water, or industrial alcohol and solvent cleaner for higher cleaning requirements
- Industrial control chip microcontroller with flexible circuit boards control for secure & stable operation
- Includes drainage, basket, lid and multi-direction castors
- Transducer: Korean technology
- PCB board is independently researched and developed by Skymen
- Suitable for cleaning cast iron, steel, stainless steel, brass, bronze
Benefits of Ultrasonic Cleaning
Compared with traditional methods, ultrasonic cleaning effectively removes dirt, oils, lubricants, carbon, and other types of grime that build up on objects. Grooves, internal passageways, hidden corners, seals, and other hard-to-reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts.
Key advantages: No harm to objects, significant cost and labor savings.
How Ultrasonic Cleaning Works
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power. This cleaning action gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid. Because the liquid can penetrate into very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.
Applications
Electronic factories, utensil manufacturing, hardware production, machinery, communication equipment, biological and medical instruments, glasses, optical components, textile industry, auto parts, ships, aviation, mining areas, commercial cleaning.
Kitchen industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
Warranty
1 Year warranty for Skymen ultrasonic cleaner. If any technical problem occurs during warranty period, replacement parts will be sent free of charge. Technical support is also available after 1 year.
Cleaning Results
Frequently Asked Questions
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck parts cleaning (remove oils, grease, pastes, etc.). 40kHz is better for PCB boards, electronic parts. Higher precision goods require higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
Q: What cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Q: Is rinsing after cleaning cycles necessary?
A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.
Skymen Cleaning Equipment Shenzhen Co., Ltd. has been engaged in ultrasonic cleaner field for more than 14 years. Our main products are ultrasonic cleaners with different capacities.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality products and after-sales services are available from us. Not only standard ultrasonic cleaners, any non-standard models can be designed by our engineers.
