2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

Certificat
Chine Skymen Technology Corporation Limited certifications
Chine Skymen Technology Corporation Limited certifications
Examens de client
J'ai que vous faites à bonne qualité le décapant ultrasonique, premier ans heureux est très bon.

—— Stefan (Allemagne)

Excellente machine. Je peux décapant ultrasonique recommandé de parachutistes à tout le monde qui a besoin pour le professionnel ou le passe-temps.

—— Blasko Krstev

Les systèmes étaient examiné bien reçu et travail très très bien. J'apprécie toute votre aide. Regard en avant pour avoir de futures affaires avec vous encore.

—— Haytham Tarhini (Arabie Saoudite)

Je suis en ligne une discussion en ligne

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System
2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

Image Grand :  2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

Détails sur le produit:
Certification: CE, RoHS
Document: Brochure du produit PDF
Conditions de paiement et expédition:
Quantité de commande min: 1

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

description de
Modèle no.: JTS-1288AD Automation: Semi-automatique
Précision de nettoyage: Nettoyage industriel général Contrôle: Numérique
Principe: Le nettoyage physique Minuteur: 1-30min réglable
Chauffage: 20-80C réglable Fréquence ultrasonique: 28KHz/40KHz
Réservoir: SUS304 / SUS316L Finition de surface: Traitement de placage du CR (20+ microns)
Matériel de logement: acier inoxydable Puissance ultrasonique: Personnalisé
Chauffage: 1,5 kW | 3KW | 4,5 kW Capacité du réservoir: 2000L
Type de transducteur: Type BLT d'origine
Mettre en évidence:

2000L marine engine ultrasonic cleaner

,

industrial ultrasonic cleaner with oil filter

,

large capacity marine parts cleaner

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System and Motor Drive Lift
Product Overview

This marine engine parts ultrasonic cleaner utilizes advanced ultrasonic technology to effectively clean and degrease ship components including engines and wheels. The ultrasonic bubbles penetrate hard-to-reach areas that manual or traditional cleaning methods cannot access.

The tank size is fully customizable to meet specific customer requirements. The system efficiently removes rust, carbon deposits, paint, and heavy oil without damaging parts when used with appropriate cleaning solutions.

Product Images
2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 0 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 1 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2
Key Features
  • Adjustable ultrasonic power with sweep mode control
  • Original BLT type transducer for superior performance
  • SUS 316L stainless steel tank construction
  • Designed for continuous operation capability
  • Precise adjustable thermo controller
  • Separately controlled ultrasonic electronic generator
  • Digital timer and heating control system
  • Optional boost mode and oil skimmer available

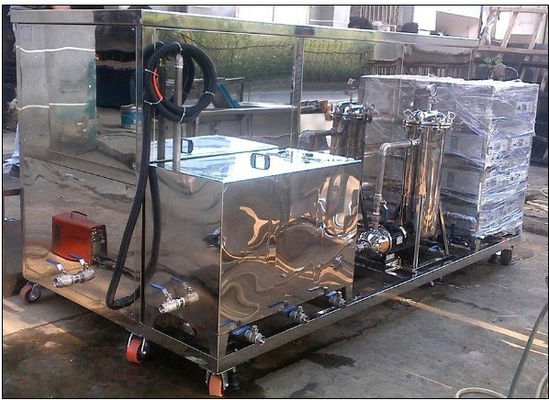

  • Pressure pump and filter system options
Warranty: 1 year
Lead Time: 25 working days
Technical Specifications
Model JTS-1006 JTS-1012 JTS-1018 JTS-1024 JTS-1030 JTS-1036
Tank's Working Dimension (mm) L1 305 355 406 500 500 500
Tank's Working Dimension (mm) W1 250 305 305 355 406 460
Tank's Working Dimension (mm) H1 305 355 460 500 500 550
Overall Dimension (mm) L2 485 535 586 680 710 710
Overall Dimension (mm) W2 430 485 485 535 586 640
Overall Dimension (mm) H2 700 750 680 720 720 770
Tank's Total Capacity 23L 38L 56L 88L 101L 126L
Tank's Material SUS304 / SUS316L
In-Tank Surface Finishing Hard-Cr Plating Treatment (20+ microns)
Housing's Material Stainless steel
Ultrasonic Frequency* 28kHz / 40kHz
Ultrasonic Transducer 6 12 18 24 30 36
Ultrasonic Output Power (Max.) 300W 600W 900W 1200W 1500W 1800W
Electronic Generator KG300 KG600 KG900 KG1200 KG1500 KG1800
Heater's (Hot Plate) Power 1.5kW 3kW 4.5kW
System Description

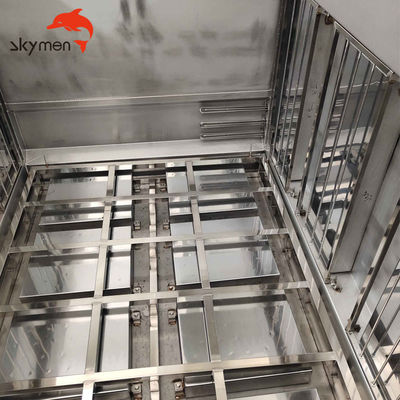

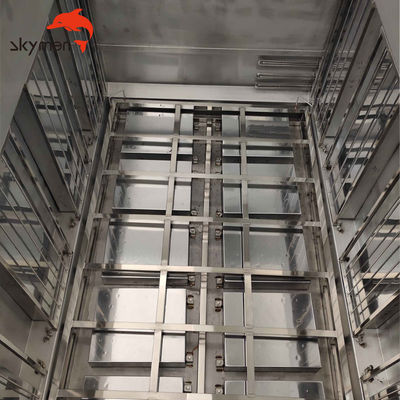

The JTS series single tank ultrasonic cleaner system features a replaceable transducer box and generator. These components can be either built-in or separate while working together to perform the ultrasonic cleaning process. The transducer box is immersible and can be mounted on one side, both sides, or the bottom of the tank.

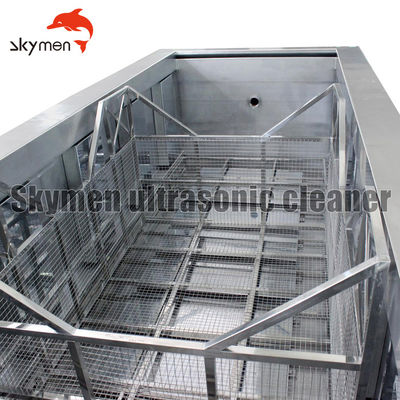

The number and placement of transducers are carefully selected to maximize cleaning efficiency for any parts cleaning application. Both tank dimensions and transducer box specifications are available as custom options. The system delivers exceptional cleaning performance for molds and various parts, with an optional stainless steel basket available.
